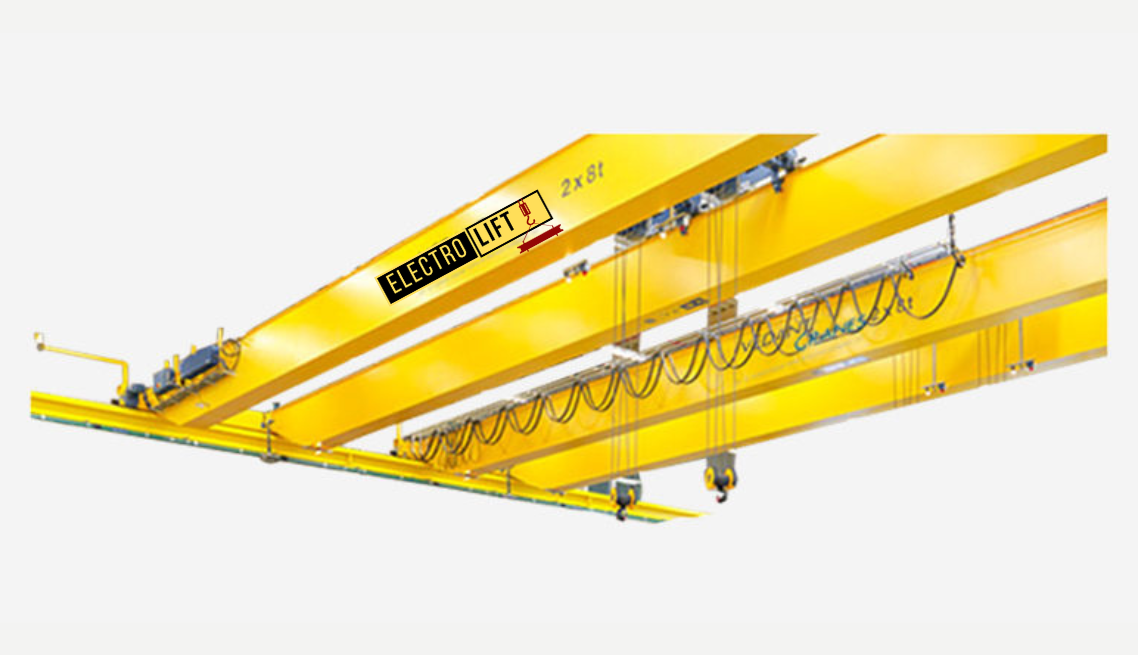

Double Girder EOT Crane

Electro Lift offers high‐quality Double Girder EOT Cranes that have a very high load capacity of Up to 200 MT. These Double Girder EOT Cranes are in massive demand in heavyweight industries like shipyards, metal industries, construction sites, etc. Our Double Girder EOT Cranes ensure low dead weight because of the box girder design, and the bolted design ensures that these are geometrically reliable during assembly as well. Double Girder EOT Cranes can be fitted with walkways and assembly platforms, making them suitable for maintaining workshop fittings.
Living up to the promise of quality that our brand Electro Lift is synonymous with, our EOT Cranes are tested on various quality, design, and performance parameters before being deemed fit for usage by our esteemed clients. They are dispatched only when each component of the crane has passed all test parameters successfully.

We provide our Double Girder EOT Cranes in multiple categories.

M3 ‐ These are light‐duty cranes, used mainly in repair shops, light assembly operations, service buildings, light warehouses, etc.
M5 ‐ Medium duty cranes for machine shops and general indoor/ outdoor industrial use.
M7 ‐ These are heavy‐duty cranes used in heavy machine shops like steel mills, steel warehouses, fabrication shops, paper mills, etc. used in scrap yards, fertilizer plants & induction furnace, with magnet and bucket operation.
M8 ‐ These are extra heavy‐duty cranes for steel mills and other heavy engineering purposes. These can be customized for hot metal application on request.

APPLICATION OF DOUBLE GIRDER EOT CRANE

The double girder EOT crane design is recommended for lifting heavy loads. Double girder EOT crane parts are suitable for large warehouses or heavy-duty material handling industries, such as iron and steel production, railyards, and shipping ports. The double girder EOT Crane has two main girders designed with an electric wire rope hoist and a normal chain pulley.

Crane Specifictions of Double Girder Eot Crane

General Crane Specification of Double Girder Eot Crane 5 ton-50 ton

Capacity	t	5	10	16	20	32	50
Span	S(m)	10.5~31.5	10.5~31.5	10.5~31.5	10.5~31.5	10.5~31.5	10.5~31.5
Lifting height	m	6~16	6~16	6~16	6~16	6~18	6~16
Lifting speed	m/min	11.5	8.5	7.9	7.2	6	6
Trolley speed	m/min	37.2	37.4	40.1	40	37	31.3
Crane speed	m/min	70.6	70.6	74.3	75.1	64.9	58.5
Work duty		A3~A7	A3~A7	A3~A7	A3~A7	A3~A7	A3~A7
Track type		P38	P38 P43	P43	P43	QU70	QU8

General crane specification of double girder eot crane 75 ton -250 ton

apacity	t	75	100	125	160	200	250
Span	S(m)	10.5~31.5	13~31	13~31	13~31	13~31	13~31
Lifting height	m	6~20	6~20	6~20	6~22	6~20	6~20
Lifting speed	m/min	3.9	3.1	3.9	3.5	2.6	2.2
Trolley speed	m/min	31.3	33.6	33	40	32	32
Crane speed	m/min	61	61.8	62.3	68	48	50
Work duty		A3~A7	A3~A7	A3~A7	A3~A7	A3~A7	A3~A7
Track type		QU100	QU100	QU100	QU120	QU120

General crane specification of double girder eot crane 300 ton- 450 ton

Capacity	t	300	350	400	450
Span	S(m)	13~31	13~31	13~31	13~31
Lifting height	m	6~24	6~24	6~24	6~24
Lifting speed	m/min	2.4	2.2	2.6	2.1
Trolley speed	m/min	28	28	31	27
Crane speed	m/min	42	42	45	42
Work duty		A3~A7	A3~A7	A3~A7	A3~A7
Track type		QU120	QU120	QU120	QU120

Detailed crane specification of double girder eot crane 5 ton

QD Electric Double Girder Eot Crane with Hook Crane Specification of 5 Ton
Span (S)	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5

Lifting speed	m/min	12.5(A5)、15.5(A6)
Trolley speed	m/min	37.2
Crane speed	m/min	90.7(A5)、115.6(A6)					91.9(A5)、116.8(A6)
Lifting motor	kw	13(A5)、15(A6)
Trolley motor	kw	1.8

Overall weight（A5）	kg	11830	13670	15565	18200	20650	25040	28130	31080
Overall weight（A6）	kg	12130	13980	15860	18500	20950	25240	28330	31280
Max. wheel load（A5）	KN	72	78	84	92	97	109	117	125
Max. wheel load（A6）	KN	73	79	85	93	98	110	118	125
Rail recommended		P43

Main dimension	mm	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5

Wheel tread to trolley top	H	1763	1763	1763	1763	1763	1763	1763	1763
Wheel tread to main girder bottom	H2	-24	126	226	376	526	676	826	976
Wheel tread to hook center	H4	71	71	71	71	71	71	71	71
End beam wheel’s distance	W	3400	3400	3550	3550	3550	5000	5000	5000
End beam length	B	5054	5054	5204	5204	5204	5948	5948	5948
Trolley wheels’ distance	L	1400
Hook left limitation	S2	800
Hook right limitation	S3	1250

Detailed crane specification of double girder eot crane 10 ton

QD Electric Double Girder Eot Crane with Hook Crane Specification of 10 Ton
Span (S)	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5

Lifting speed	m/min	8.5(A5)、13.3(A6)
Trolley speed	m/min	43.8
Crane speed	m/min	90.7(A5)、115.6(A6)			91.9(A5)、116.8(A6)		84.7(A5)、112.5(A6)
Lifting motor	kw	17(A5)、22(A6)
Trolley motor	kw	2.5

Overall weight（A5）	kg	13640	15520	18350	20340	22750	27140	30530	33620
Overall weight（A6）	kg	13980	15870	18685	20385	22990	27470	30870	33960
Max. wheel load（A5）	KN	101	108	117	122	130	140	150	160
Max. wheel load（A6）	KN	102	109	118	123	132	143	152	162
Rail recommended		P43

Main dimension	mm	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5

Wheel tread to trolley top	H	1876	1876	1876	1876	1876	1926	1926	1926
Wheel tread to main girder bottom	H2	-24	126	226	376	526	628	778	928
Wheel tread to hook center	H4	602	602	602	602	602	552	552	552
End beam wheel’s distance	W	4050	4050	4050	4050	4050	5000	5000	5000
End beam length	B	5704	5704	5704	5882	5882	5948	5948	5948
Trolley wheels’ distance	L	2000
Hook left limitation	S2	1300
Hook right limitation	S3	2000
